5 Reasons to Choose the Asus Prime X870-P WiFi Motherboard for Your Next Build

The ASUS Prime X870-P WiFi motherboard is crafted to bring out the best in AMD Ryzen™ 9000 Series processors, setting a new standard for power and performance in PC building. This motherboard is built with a robust power design and cutting-edge cooling solutions that enhance system stability and longevity. For both experienced DIY builders and high-performance users, the PRIME X870-P WiFi provides powerful customization and tuning options accessible through intuitive software and firmware features.

AI-Driven Power and Connectivity

With the rise of AI applications, the PRIME X870-P WiFi is ready to meet advanced computing demands. Its Advanced AI PC-ready architecture offers optimal connectivity and processing power, making it ideal for AI workloads and resource-intensive tasks.

Key Features of the ASUS Prime X870-P WiFi Motherboard

• Power Stages (Logo)
  14 (80A) + 2 (80A) + 1 (80A) Power Stages with Enlarged VRM Heatsinks
  Enhanced power delivery with robust heatsinks, providing stability and efficiency for AMD Ryzen™ 9000 series processors.
• AI Solutions (AI Solutions Icon)
  AI Solutions for Advanced AI Capabilities
  Engineered to support demanding AI applications, offering an optimized and intelligent system performance experience.
• DDR5 Support (DDR5 Logo)
  AEMP for Enhanced DDR5 Performance
  Advanced memory profile support ensures high-performance DDR5 memory for faster data processing.
• WiFi 7 Connectivity (WiFi 7 Icon)
  WiFi 7 for Stable Connection and Lower Latency
  Equipped with WiFi 7, enabling faster speeds and reduced latency for a seamless online experience.
• USB 40Gbps Type-C® Port (USB 40Gbps Type-C Icon)
  USB 40Gbps Type-C® for Latest Super-Speed Devices and Drives
  Enables ultra-fast data transfer, ideal for external storage and high-speed peripherals.
• PCIe 5.0 Slots (PCIe 5.0 Slots Icon)
  PCIe 5.0 Slots for Graphics Card and Storage
  Supports the latest PCIe 5.0 standard, offering faster data bandwidth for both graphics and storage expansion.
• USB 10Gbps Type-C® Port (USB 10Gbps Type-C Icon)
  USB 10Gbps Type-C® for Rapid Data Transmission
  A high-speed USB port designed for quick data transfers and peripheral connectivity.
• EZ PC DIY (EZ PC DIY Icon)
  EZ PC DIY for Easier Build Customization
  Intuitive features and user-friendly tools that make building and customizing your PC easier.
• Aura Sync RGB Lighting (Aura Sync Icon)
  Aura Sync for Full RGB Lighting Control
  Customize and sync your lighting for a visually cohesive setup with ASUS Aura Sync.

Performance Specifications

• CPU Support
• AM5 Socket: Compatible with AMD Ryzen™ desktop processors, optimized for high-performance processing.
• PCIe Slots
• 1 x PCIe 5.0 x16: Supports x16 mode with SafeSlot and Q-Release for secure graphics card installation.
• 3 x PCIe 4.0 x16: Supports x1 mode, allowing versatile expansion options for additional devices.
• Power Stages
• 14 (80A) + 2 (80A) + 1 (80A): Robust power delivery design with enhanced VRM heatsinks for stable performance.
• Memory
• 4 x DIMM Slots: Supports DDR5 memory in dual-channel configuration.
• AEMP: Advanced memory profile for optimized DDR5 performance.
• M.2 Storage
• M.2_1 2280: PCIe 5.0 x4 mode for ultra-fast NVMe storage.
• M.2_2 2242/2260/2280: PCIe 4.0 x4 mode, balancing speed and compatibility.
• M.2_3 2280: PCIe 4.0 x4 mode for additional NVMe storage.
• M.2_4 2280: PCIe 3.0 x2 mode for versatile storage expansion.

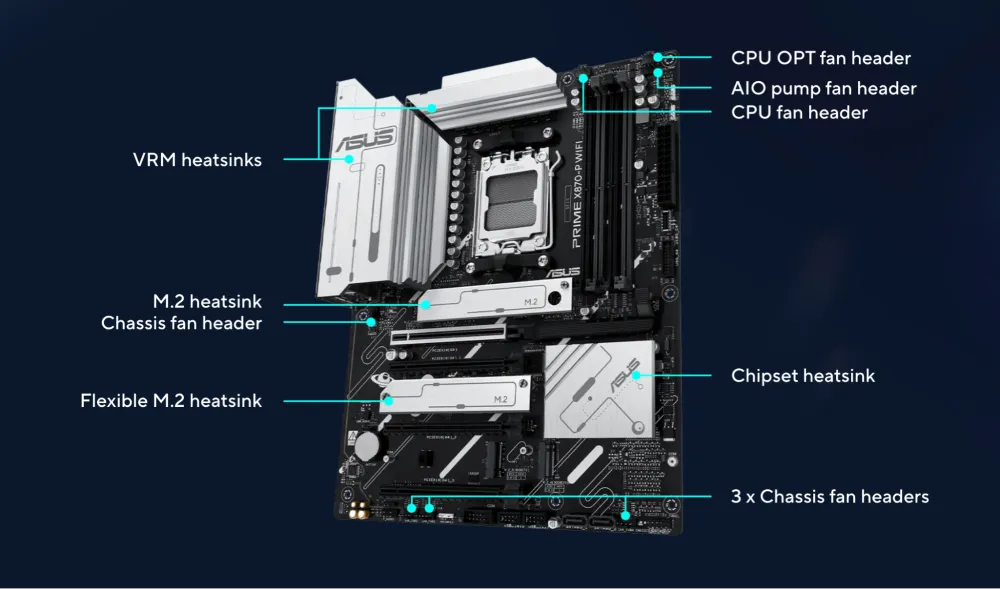

Cooling Specifications

• VRM Heatsinks: Enlarged heatsinks for effective VRM cooling, ensuring stable power delivery even during heavy workloads.
• Flexible M.2 Heatsink: Customizable M.2 heatsink design for optimal thermal performance on high-speed drives.
• Chipset Heatsink: Dedicated heatsink to keep the chipset cool and maintain overall system stability.
• Fan Headers
• CPU Fan Header: Dedicated header for CPU cooling fan to maintain processor temperatures.
• CPU OPT Fan Header: Additional CPU fan header for optimized cooling setups.
• AIO Pump Fan Header: Supports AIO liquid coolers for enhanced cooling capabilities.
• 3 x Chassis Fan Headers: Multiple headers for case fans, allowing for flexible cooling configurations.

Flexibility Specifications

• Networking
• 2.5Gb Ethernet: Provides high-speed wired connectivity for gaming and data-intensive applications.
• WiFi 7: Supports the latest WiFi 7 standard for faster and more stable wireless connections with lower latency.

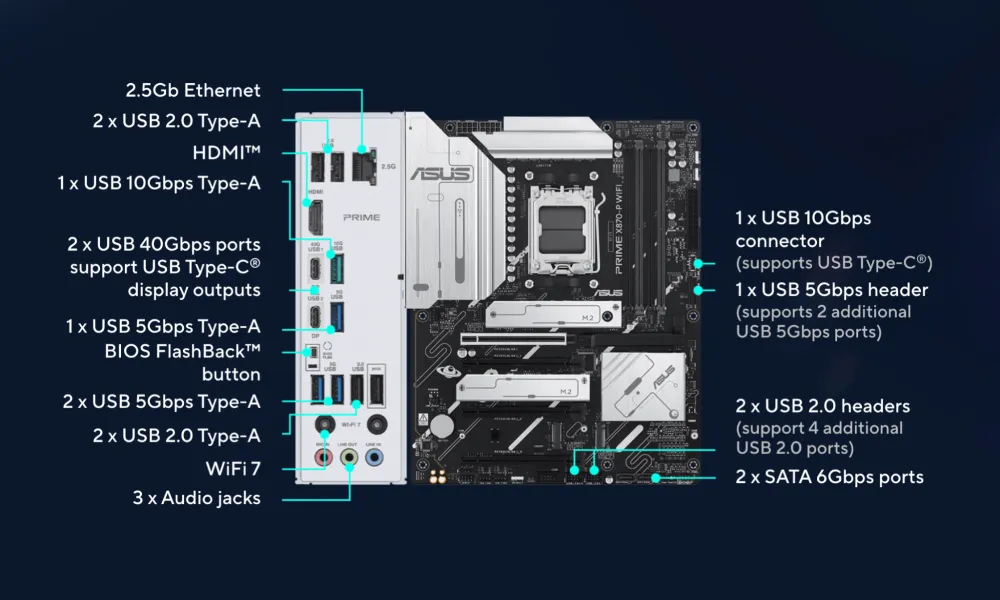

• USB Connectivity
• USB Ports (Rear I/O):
• 2 x USB 2.0 Type-A
• 1 x USB 10Gbps Type-A
• 2 x USB 40Gbps Type-C: High-speed ports supporting display output.
• 2 x USB 5Gbps Type-A
• USB Connectors (Internal):
• 1 x USB 10Gbps Connector: Supports USB Type-C®.
• 1 x USB 5Gbps Header: Adds support for 2 additional USB 5Gbps ports.
• 2 x USB 2.0 Headers: Support up to 4 additional USB 2.0 ports.
• Display Output
• HDMI™ Port: For display output, compatible with a variety of monitors and display configurations.
• Other Connectivity Options
• BIOS FlashBack™ Button: Enables easy BIOS updating without the need for a CPU, memory, or graphics card.
• 3 x Audio Jacks: High-quality audio jacks for immersive sound.
• Storage
• 2 x SATA 6Gbps Ports: Support for traditional HDDs and SSDs for reliable storage options.

Customization Specifications

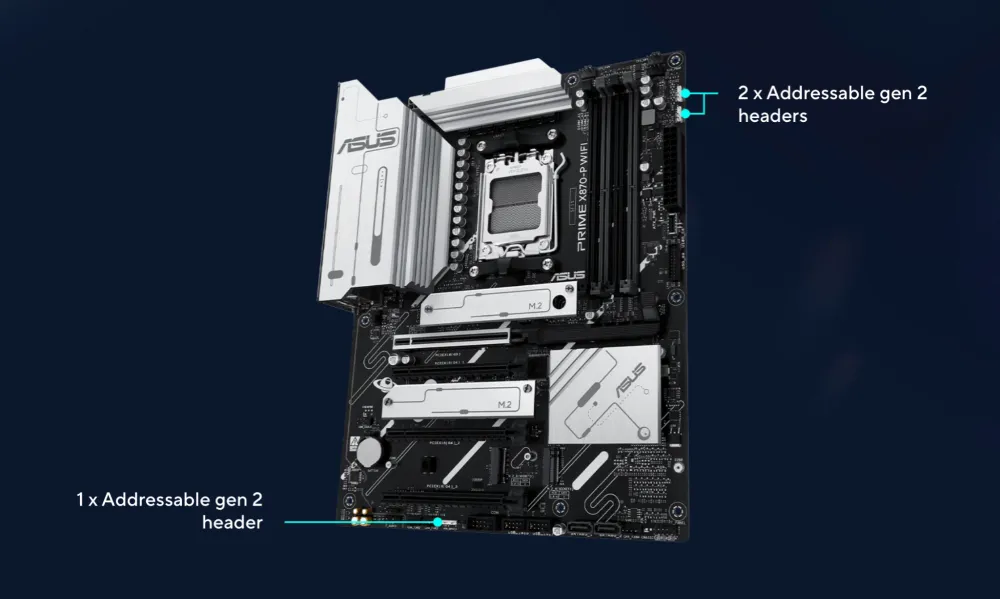

• RGB & LED Control
• 1 x Addressable Gen 2 Header: Allows customization and synchronization of individual RGB components for enhanced aesthetic control.
• 2 x Addressable Gen 2 Headers: Additional headers to expand RGB customization across more components, enabling unique lighting setups.

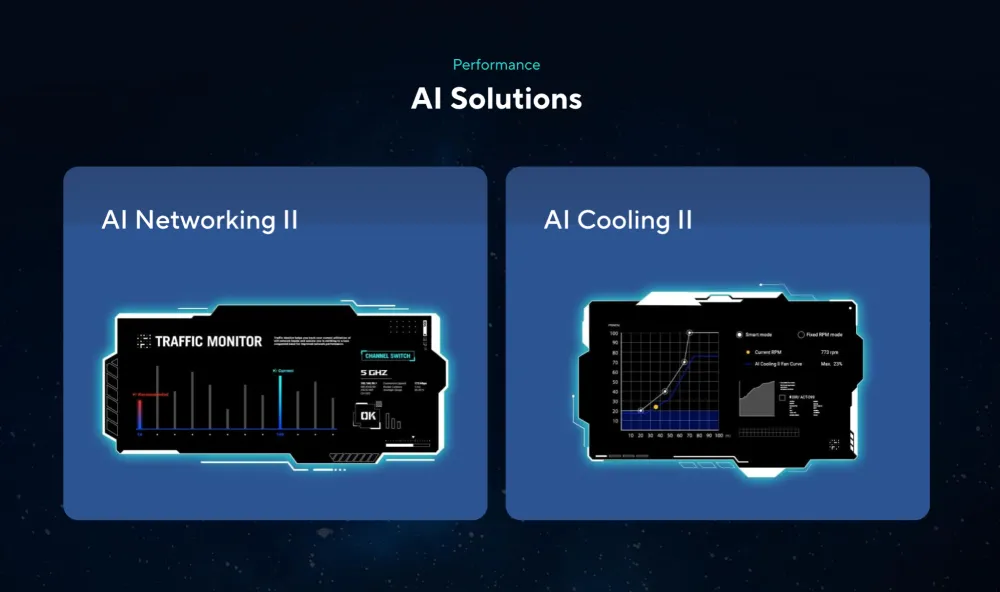

AI Solutions

• ASUS AI Solutions
  With advanced AI capabilities, ASUS AI Solutions on the PRIME X870-P WIFI motherboard are tailored to enhance connectivity, performance, and cooling efficiency. The intuitive design allows users to access optimized network settings and cooling adjustments with ease.
• AI Networking II
• Optimized Network Performance: Automatically maximizes network speed, especially when utilizing WiFi 7, for uninterrupted connectivity.
• One-Click Setup: Users can configure AI Networking II instantly, allowing for real-time bandwidth adjustments with minimal effort.
• AI Cooling II
• Thermal & Acoustic Efficiency: AI Cooling II dynamically adjusts fan speeds based on CPU temperature, ensuring an ideal balance between reduced system noise and efficient cooling. This results in quieter operation and optimized thermal performance, particularly useful during intense workloads.

These AI Solutions streamline performance enhancements, making the PRIME X870-P WIFI motherboard ideal for both experienced users and beginners looking to leverage high-end performance with minimal manual tuning.

Performance

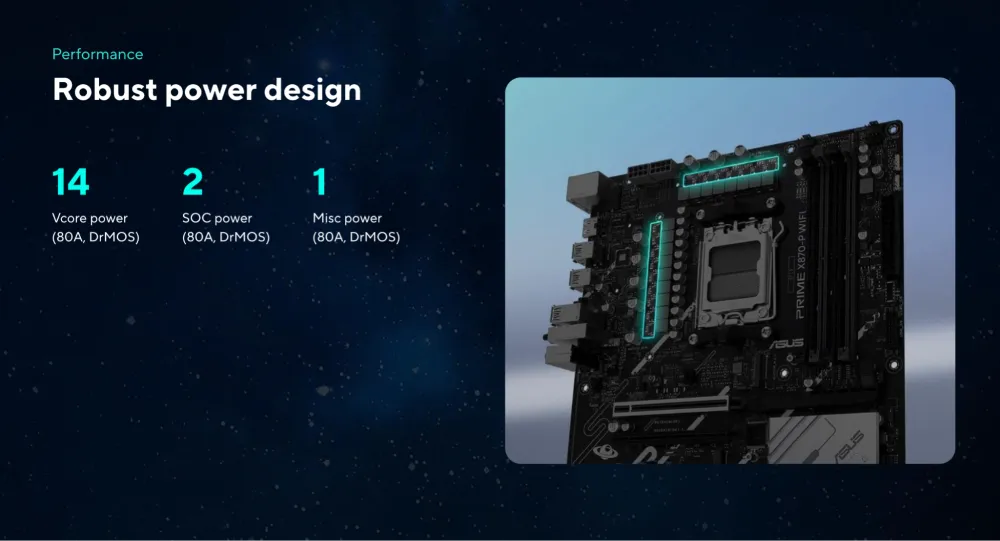

• Robust Power Design
  Stability and consistent power delivery are essential to achieve maximum performance with AMD processors, especially those with high-core counts. The ASUS PRIME X870-P WIFI motherboard is engineered to meet these demands with its robust power architecture:
• Power Stages: Equipped with a 14+2+1 power stage configuration, where each stage is rated for 80A. The setup combines high-side and low-side MOSFETs and drivers in each power package, ensuring powerful and efficient delivery to the CPU.
• 14 Vcore Power Stages (80A, DrMOS): Dedicated to powering the CPU cores, providing the needed stability and efficiency for high-performance tasks.
• 2 SOC Power Stages (80A, DrMOS): Dedicated to powering the system-on-chip, enhancing GPU and memory capabilities.
• 1 Miscellaneous Power Stage (80A, DrMOS): Powers auxiliary components, supporting stability across the board.

This advanced power delivery configuration ensures the motherboard is capable of meeting the demands of current and future AMD processors, maximizing performance and enabling overclocking with stable efficiency.

Performance Enhancements

• Eight-Layer PCB Design
  The PRIME X870-P WIFI features an advanced eight-layer PCB design, which significantly enhances the stability and reliability of the motherboard. This architecture supports improved overclocking potential, ensuring that the motherboard can handle high-performance components and maintain optimal performance under heavy loads.


• ProCool Connectors
  The motherboard is equipped with ProCool connectors that consist of proprietary 8 + 8 pin connectors. These connectors enhance the link between the power supply unit (PSU) and the motherboard by delivering 12 volts of power directly to the processor. Solid pin design allows these connectors to handle more current than traditional hollow-pin connectors, ensuring a stable and efficient power supply during demanding tasks.


• Power Saving Features
  To optimize energy efficiency, the PRIME X870-P WIFI motherboard includes a Power Saving function that provides several customizable settings. Users can adjust the following to maximize energy savings:
• Enable a CPU power limit to control the maximum power consumption.
• Adjust Aura lighting settings to reduce brightness.
• Set the fan profile to a Power Saving mode to minimize noise and power use.
• Toggle the built-in Power Saver plan available in Microsoft Windows for further energy optimization.
• Digi+ VRM Control
  The motherboard also includes Digi+ VRM control, which allows for real-time voltage control. This feature ensures that the power delivery to the CPU and other components is finely tuned for stability, efficiency, and performance, particularly during overclocking scenarios.

Enhanced Memory & Storage Performance

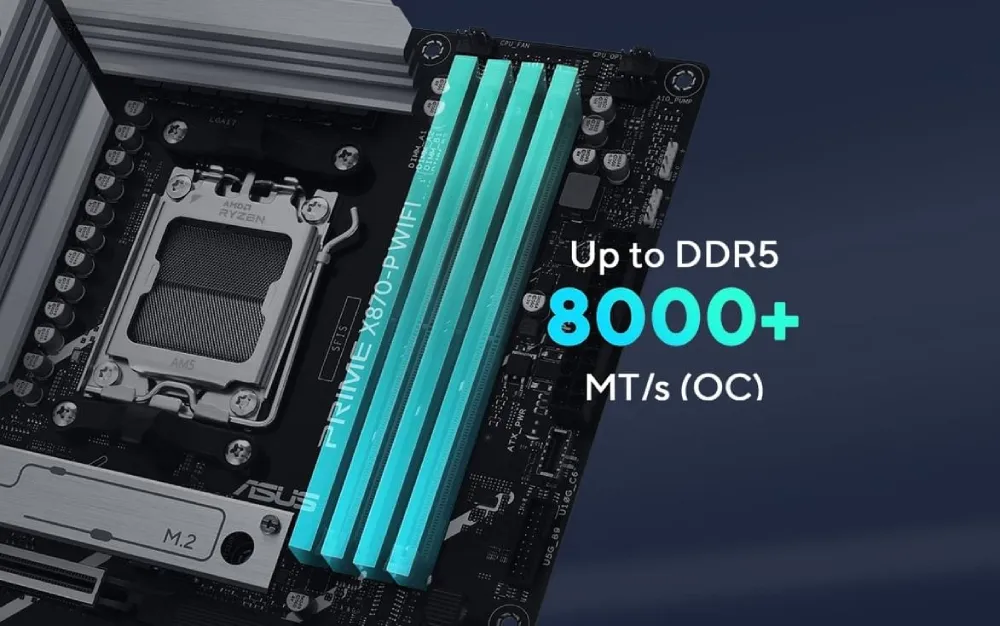

• Maximized DDR5 Performance
  The PRIME X870-P WIFI motherboard is designed to unleash the full potential of DDR5 memory modules, catering to users from entry-level to high-performance setups.
• ASUS Enhanced Memory Profile (AEMP)
  For entry-level DDR5 modules that lack EXPO™ support, the motherboard features ASUS Enhanced Memory Profile (AEMP). This technology automatically detects the memory chips used and provides optimized profiles to enhance overall memory performance, ensuring users can achieve better efficiency without manual tuning.
• AMD Extended Profiles for Overclocking (EXPO™) Support
  For enthusiasts aiming to exceed stock DDR5 speeds, the PRIME X870-P WIFI motherboard supports AMD Extended Profiles for Overclocking (EXPO™). This capability enables users to easily push their memory beyond standard specifications through a range of user-friendly UEFI settings, allowing for customized performance tweaks to suit individual needs.

These features collectively ensure that users can experience exceptional memory and storage performance, whether they're building a high-performance gaming rig or a productivity-focused workstation.

Enhanced Storage Capabilities

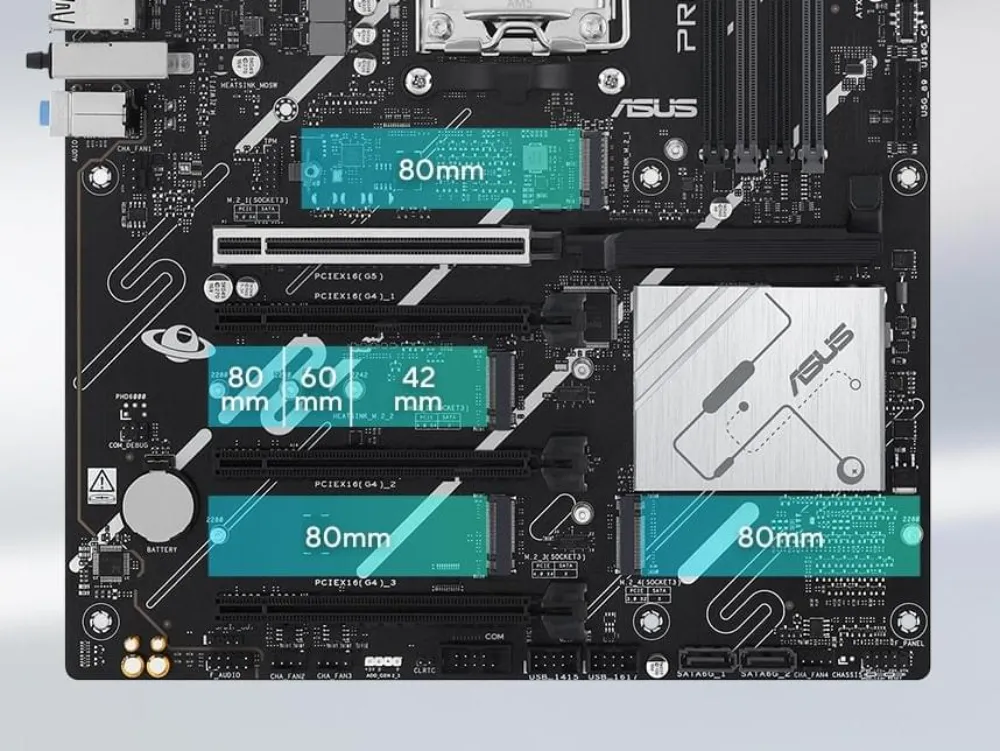

• Four M.2 Slots for Maximum Connectivity
  The PRIME X870-P WIFI motherboard is equipped with four M.2 slots, allowing for extensive storage options and flexibility in configurations.
• High-Speed Data Transfer
• One M.2 Slot: Supports data transfer speeds of up to 128 Gbps via PCIe 5.0, enabling lightning-fast access to storage devices.
• Two M.2 Slots: Each supports 64 Gbps via PCIe 4.0, ensuring rapid data handling for high-performance applications and games.
• One M.2 Slot: Supports PCIe 3.0, accommodating a variety of storage devices and expanding compatibility.

These advanced storage features significantly improve boot-up and application load times, making the PRIME X870-P WIFI an excellent choice for users who demand efficiency and speed in their computing experience.

UEFI BIOS

The UEFI interface on the PRIME X870-P WIFI motherboard provides an intuitive and user-friendly experience, making it accessible for PC beginners while offering advanced features for experienced users.

• User-Friendly Configuration
  Beginners can easily navigate through straightforward configuration options, simplifying the setup process for their systems.
• Advanced Features for Veterans
  Advanced users can dive into detailed settings, optimizing their systems for maximum performance.

ASUS GlideX enables seamless screen sharing and control across multiple devices, including PCs, tablets, and smartphones. This feature supports both wired and wireless connections, enhancing multitasking and productivity across platforms.

ASUS DriverHub simplifies driver management, automatically detecting the necessary drivers for your system. With one-click installation and update capabilities, it ensures smooth and efficient system performance, eliminating the hassle of manual driver updates.

Armoury Crate is a centralized hub for customizing Aura Sync RGB lighting and controlling ASUS devices. It also includes features for product registration and updates, making it easier to manage your ASUS hardware.

Aura Sync offers complete RGB lighting control for enthusiast systems, allowing users to synchronize lighting effects with compatible hardware for a cohesive aesthetic experience.

Addressable Gen 2 RGB Headers

The motherboard features three addressable Gen 2 RGB headers that automatically detect LED counts on compatible RGB devices. This functionality adjusts lighting effects dynamically, ensuring an optimal visual experience tailored to your setup.

Frequently Asked Questions about the ASUS PRIME X870-P WIFI Motherboard

1. What are the key features of the ASUS PRIME X870-P WIFI motherboard?
   The ASUS PRIME X870-P WIFI motherboard offers a robust power design with 14(80A) + 2(80A) + 1(80A) power stages, support for AMD Ryzen™ 9000 series processors, four M.2 slots for high-speed storage, and comprehensive cooling solutions. It also includes advanced connectivity options such as WiFi 7 and USB 40Gbps Type-C® ports.
2. How many M.2 slots does the ASUS PRIME X870-P WIFI support?
   The motherboard features a total of four M.2 slots. One slot supports PCIe 5.0 with data-transfer speeds of up to 128 Gbps, while two slots support PCIe 4.0 at 64 Gbps, and one slot supports PCIe 3.0.
3. Is the ASUS PRIME X870-P WIFI motherboard compatible with DDR5 RAM?
   Yes, the ASUS PRIME X870-P WIFI motherboard supports DDR5 RAM, allowing for enhanced memory performance. It includes features such as ASUS Enhanced Memory Profile (AEMP) and AMD Extended Profiles for Overclocking (EXPO™) to optimize performance for various DDR5 modules.
4. Can I control RGB lighting on the ASUS PRIME X870-P WIFI motherboard?
   Absolutely! The motherboard features Aura Sync technology for complete RGB lighting control, allowing users to customize and synchronize lighting effects across compatible devices. It also includes three addressable Gen 2 headers that automatically adjust lighting based on LED counts.
5. What type of cooling solutions does the ASUS PRIME X870-P WIFI offer?
   The motherboard is engineered with multiple onboard heatsinks and an array of hybrid fan headers, including CPU and chassis fan headers, to ensure optimal cooling performance. This design helps maintain system stability under heavy workloads, providing an efficient cooling solution for demanding applications.
